- Place of Origin: Shandong, China
- Brand Name: LuYoung

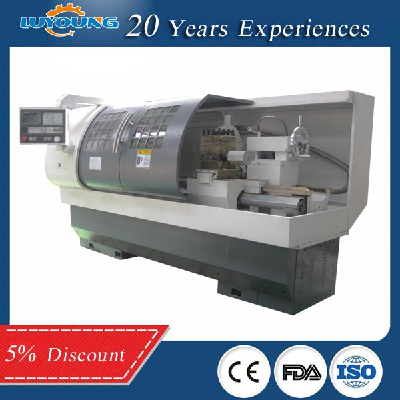

- Model Number: CK6163
- Weight: 3000.000 kg
Specification:
Model | CK6163B*1000 | CK6163B*1500 | CK6163B*2000 | CK6163B*3000 |
Max. swing over bed (mm) | φ630 | φ630 | φ630 | φ630 |
Max. swing dia. over cross slide(mm) | φ350 | φ350 | φ350 | φ350 |
Max.processing length(mm) | 1000 | 1500 | 2000 | 3000 |
Form | Three gears No grade to change frequency | Three gears No grade to change frequency | Three gears No grade to change frequency | Three gears No grade to change frequency |
Number of spindle speed | No grade | No grade | No grade | No grade |
Range of spindle speed(r/min) | 25-850 rpm | 25-850 rpm | 25-850 rpm | 25-850 rpm |
The spindle terminal structure | C11 | C11 | C11 | C11 |
Diameter of spindle bore (mm) | φ105 | φ105 | φ105 | φ105 |
The taper of spindle front-end | (Metric)120 1:20 | (Metric)120 1:20 | (Metric)120 1:20 | (Metric)120 1:20 |
Power of main motor (KW) | 11KW | 11KW | 11KW | 11KW |
Max.travel of tool post (mm) | X:530 Z:1200 | X:530 Z:1700 | X:530 Z:2300 | X:530 Z:3300 |
Fast moving feed speed (mm/min) | X:4000 Z:5000 | X:4000 Z:5000 | X:4000 Z:5000 | X:4000 Z:5000 |
Resetting accuracy(mm) | X:0.012 Z:0.016 | X:0.012 Z:0.016 | X:0.012 Z:0.016 | X:0.012 Z:0.016 |
Processing accuracy(mm) | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 |
Sleeve diameter of tailstock (mm) | φ100 | φ100 | φ100 | φ100 |
Sleeve travel of tailstock (mm) | 250 | 250 | 250 | 250 |
Cone hole taper of tailstock’s sleeve | MT6 | MT6 | MT6 | MT6 |
Standard configuration | Four-station vertical electrical knife rest | Four-station vertical electrical knife rest | Four-station vertical electrical knife rest | Four-station vertical electrical knife rest |
Alternative configuration | Horizontal Six-station electrical knife rest | Horizontal Six-station electrical knife rest | Horizontal Six-station electrical knife rest | Horizontal Six-station electrical knife rest |
Restting accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 |
Length of section of knife handle (mm) | 30×30 | 30×30 | 30×30 | 30×30 |
Length*width*height | 3200×1820×1710 | 3700×1820×1710 | 4200×1820×1710 | 5200×1820×1710 |
Net weight (Kg) | 3900 | 4300 | 4800 | 5200 |
Standard configuration:
1. GSK 980TDC
2. Manual 3 jaw chuck
3. 4 station tools carrier
4. Auto lubrication system
5. Lighting system
6. Cooling system
7. 380V 3 phase(if your local have special request pls let us know)
Option configuration:
1. 6 /8 station electrice tool holder
2. Auto feeder system
3. Pneumatic chuck
4. Hydrualic chuck
5. Chip conveyor
