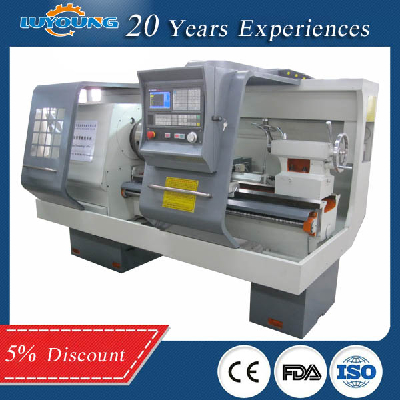

- Place of Origin: Shandong, China
- Brand Name: LuYoung
- Model Number: QK1323
- Weight: 3000.000 kg
Specification
Lathe specifications | QK1313 | |
Technical specifications | Maximum diameter of lathe bed (mm) | φ610 |
Maximum tactical diameter of sliding plate (mm) | φ350 | |
Maximum work-piece length (mm) | 1000 | |
Main drive | Form | Main motor servo stepless |
Rank of spindle speed | No grade | |
Range of spindle speed(r/min) | 50-850 rpm | |
Terminal structure | C11 | |
Hole diameter of spindle (mm) | Φ140 | |
The maximum diameter of the tube | 135mm | |
Power of main motor (KW) | 11KW(servo) | |
Feeding system | Maximum route of knife rest (mm) | X:310 Z:1150 |
Speed of quick-travel (mm/min) | X:4000 Z:5000 | |
Resetting accuracy | X:0.012 Z:0.016 | |
Precision of work piece | IT6-IT7 | |
Surface roughness | Ra1.6 | |
Tailstock | Sleeve diameter of tailstock (mm) | Φ75 |
Sleeve trip of tailstock (mm) | 150 | |
Cone hole taper tailstock’s sleeve | MT5 | |
Knife rest | Standard configuration | Four-station vertical electrical knife rest |
Alternative configuration | Horizontal Six-station electrical knife rest | |
Resetting accuracy (mm) | 0.01 | |
Length of section of knife handle (mm) | 30×30 | |
Machine size weight | Length*width*height | 2650×1450×1710 |
Net weight (Kg) | 3000Kg |
Standard configuration:
1.GSK 980 CNC Controller System
2.4 station electric tool set
3.Auto lubrication system
4.Lighting system
5.Cooling system
6.380V 3 phase(if your local have special request pls let us know)
Option configuration:
1. Fanuc,Siemens Controller
2. 6/8 station tool holder
