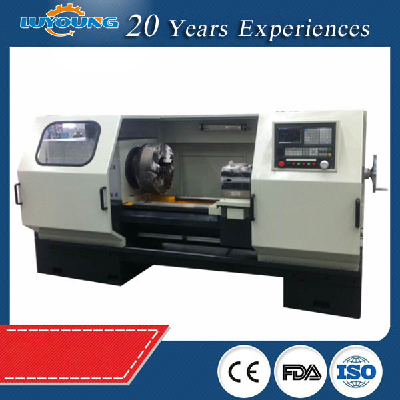

CNC Pipe Threading Lathe Machine QK1322, CNC Lathe Machine

CNC Pipe Threading Lathe Machine QK1322, CNC Lathe Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao or shanghai port
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-12-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China
  • Brand Name:  LuYoung
  • Model Number:  QK1322
  • Weight: 900.000 kg

Specification:

QK1322

Lathe specifications

Specifications

Technical  specifications

Max. swing over bed

φ630

Max. swing over carriage

φ370

Maximum work-piece length (mm)

1000

Main drive

Form

 Main motor servo  stepless

Rank of spindle speed

No grade

Range of spindle speed(r/min)

50-620rpm

Hole diameter of spindle (mm)

Φ225

The maximum diameter of the tube

Φ220mm

Power of main motor (KW)

11KWservo

Feeding system

Maximum route of  knife rest (mm)

X330   Z1150

Speed of quick-travel (mm/min)

X4000  Z5000

Resetting accuracy

X0.012  Z0.016

Precision of work piece

IT6-IT7

Surface roughness

Ra1.6

Tailstock

Sleeve diameter of tailstock (mm)

Φ100

Sleeve trip of tailstock (mm)

250

Cone hole taper tailstocks sleeve

MT5

Knife rest

Standard configuration

Four-station vertical electrical knife rest

Alternative configuration

4-station electrical knife rest

Restting accuracy (mm)

0.01

Length of section of knife handle (mm)

30×30

Mchine size

weight

Length*width*height

3600×1750×1910

Net weight (Kg)

5500Kg




Standard configuration:

1. GSK 980 CNC Controller System

2. 4 station electric tool set

3. Auto lubrication system

4. Lighting system

5. Cooling system

6. 380V 3 phase(if your local have special request  pls let us know)


Option configuration:


 Fanuc,Siemens Controller

 6/8 station tool holder
