- Place of Origin: Shandong, China
- Brand Name: LuYoung

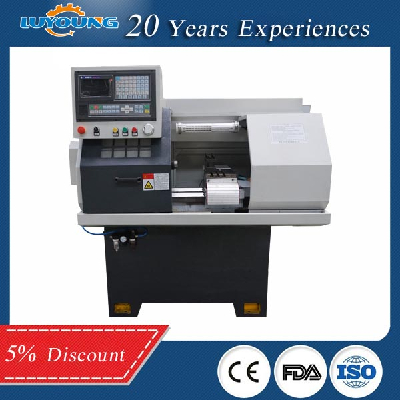

- Model Number: CK0632
- Weight: 900.000 kg
Specifications
Items | Specifications |
Max.swing over bed | Φ160 |
Max.swing over carriage | Φ60 |
Max length of work piece | 150 |
Maximum diameter of the bar | Φ25 |
X / Z axis repeat positioning accuracy | 0.012/0.013 |
X-axis max motion traveling schedule | 280 |
Z- axis max motion traveling schedule | 160 |
X-axis fast moving speed | 5 |
Z- axis fast moving speed | 8 |
Range of spindle speed | 150-3000 |
Turret form | row turret |
Power of the main drive motor | 2.2 |
Overall dimensions(L×W×H) | 1480×930×1510 |
Net weight | 900 |
Standard configuration:
l system:GSK928
l Pneumatic chuck
l Gang type tool holder
Optional configuration
l System:GSK980,KND,Siemens,Fanuc
l Manual or Power chuck
l Manual or Power tailstock
l Electric turret
l Auto Feeder System
Company Overview
Taian Lu Young Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on technology and production.
For the sales, there are internal trade department and international trade department. They are all professional salespersons who can help you solve problems on purchase and technology related to the CNC tools and test machines. Our products are sold both at home and abroad, and they are very popular around the world. All of products have pass CE certification.Welcome to contact with us to make building!!
